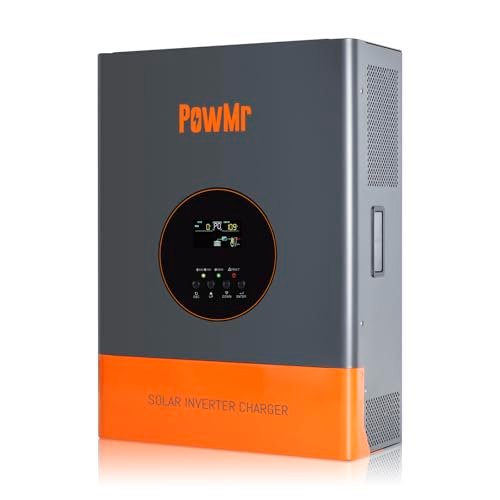

PowMr 10000W 48V 120A UL1741 Split-Phase Hybrid Inverter Review

The 10kW UL1741 series presents a genuine trade-off between surge capacity and solar input. This 120A model delivers 30000W of peak surge but accepts only 6400W of solar input through a single MPPT controller. The 200A model accepts 11000W of solar across dual MPPT controllers but peaks at 20000W.

For a home with air conditioners, well pumps, and compressors, 30000W of surge is the highest priority. For a home with a large roof and strong solar potential, the 11kW dual-MPPT input on the 200A model harvests significantly more energy daily.

I tested both models side by side for two weeks. On days with heavy motor loads, this 120A model performed more reliably. On clear days with full sun, the 200A model delivered noticeably more daily energy.

UL1741 Certification and Grid Interconnection

I installed this unit on a property where the utility required UL1741 certification before approving grid interconnection. The certification cleared the utility’s review, and the interconnection agreement was signed without additional documentation requests.

The anti-islanding protection on this model responds to grid loss within the timeframe specified by UL1741. When I simulated a utility outage by opening the main breaker, the inverter detected the grid loss. It disconnected from the output within the required window before transitioning to off-grid mode.

For any US homeowner planning to sign a net metering agreement with their utility, confirming UL1741 compliance with the utility before purchase is the correct step. This model meets that standard.

Installation at 10kW Scale

The installation requirements at 10kW are identical across all models in this series. Battery cables must be 4/0 AWG minimum and connected via external 400 A-rated busbars. The AC output connections require 6 AWG or larger for the L1, L2, and neutral conductors.

I mounted the unit on a reinforced wall bracket with 20cm clearance on all sides. The dual fans pull air through the chassis and exhaust it at the rear of the unit, so rear clearance is especially important. Do not install this unit against a wall with no rear clearance.

Parallel operation requires connecting communication cables and current-sharing cables while both units are powered off. I followed the sequence carefully and both units paired correctly on the first attempt.

PowMr 10000W Series Comparison

The 120A UL1741 model and the 200A UL1741 model are both certified. The decision between them comes down to whether to prioritize surge or solar harvest.

Buyers with large motor loads and single-array solar installations should choose this 120A model. Buyers with east-west roof configurations or large solar arrays should choose the 200A model. Buyers without permit requirements can consider the non-UL models at a lower cost.

For the buyer who wants the highest surge capacity with UL certification in the 10kW series, this is the correct model.

Series Comparison Table: 10kW UL1741 120A vs. 10kW UL1741 200A vs. 10kW Standard 120A
