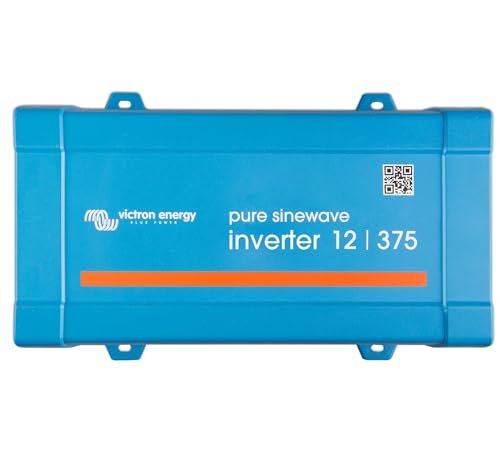

Victron Energy 12V 375VA Inverter Review

This is my review of the Victron Energy Phoenix 375VA 12V 120V AC Pure Sine Wave Inverter (NEMA 5-15R, PIN122030500), a compact, efficient unit for 12V battery systems in mobile and off-grid applications. It delivers 300W continuous output (375VA) with a peak surge of 700W, making it ideal for small electronics, gaming laptops, drone chargers, and other light loads during RV trips, boating, camping, or workshop use. Its ECO mode idle draw of just 0.9W ensures minimal battery drain during extended standby periods.

For my installation, I paired the inverter with the recommended Victron accessories to ensure a safe, fully functional setup. For monitoring and configuration, I used the VE.Direct Bluetooth Smart Dongle for mobile access, with the option of the VE.Direct-to-USB Interface for PC-based tuning. On the protection side, I installed an 80A Victron MIDI fuse with a proper MIDI fuse holder (32V rated), which is essential for safeguarding the system. I also added the Phoenix VE.Direct remote on/off panel for convenient control.

From a cabling standpoint, I sized wires according to run length: 6 mm² (approx. 10 AWG) for runs up to 1.5 meters, and 10 mm² (approx. 8 AWG) for runs up to 3 meters. Grounding was done with a minimum of 4 mm² to maintain stability and safety. This setup reflects my real-world approach: prioritizing proper protection, reliable cabling, and convenient control to maximize the inverter’s performance and safety.

First Look and Build Quality

I unboxed the Victron Energy 12V 375VA and immediately noticed how compact and light it is compared to the 800VA and 1200VA models. The aluminum housing is the smaller chassis that Victron uses across the 250VA to 500VA range. It is rigid and well-finished, with the same VE.Direct port and clean terminal layout as the larger units. The screw terminals accept up to 10 mm2 wire, which is appropriate for the current levels this unit handles.

I mounted it under the passenger seat of a van using two M6 bolts through the bracket holes on the base. It fit cleanly with clearance on all sides. The unit does not have a visible fan in the smaller chassis size. Cooling at this wattage is primarily convective through the aluminum housing. Under normal loads, the housing becomes warm to the touch but never uncomfortably hot.

I connected the VE.I connected the Direct Bluetooth Dongle and opened VictronConnect on my phone. The real-time wattage display showed exactly how much power my laptop charger was drawing at various stages of a charge cycle. That level of visibility is unusual for an inverter in this price tier, making the 375VA a genuinely useful tool for anyone trying to understand their power consumption.

What Is in the Box

The package includes the inverter and a manual. No battery cables are provided. For this unit, I used 10 AWG wire, which is the correct gauge for runs under 1.5 meters at the current levels a 375VA 12V inverter draws. The 80A MIDI Fuse and holder must be purchased and installed separately. I placed the fuse within 300mm of the battery terminal before commissioning.

The Phoenix Inverter Control VE.Direct remote panel is optional but practical for a permanent install. I wired one to a small panel in the centre console so I could power the inverter on and off without having to reach under the seat.

Outputs and Features

The 12V 375VA delivers 300W of continuous output and a 700W peak surge. The NEMA 5-15R outlet handles a gaming laptop, a tablet charger, a small drone charger, or an LED monitor without any issues. The 700W surge handles the startup spike of most LED power converters and small electronic devices. It will not run a hair dryer or a microwave, which require far more wattage than this unit provides.

ECO mode draws just 0.9W at idle, the lowest figure among the 12V Phoenix models except for the 250VA. In ECO mode, the unit pulses every 2.5 seconds to detect a connected load. When no load is present, the inverter is silent between pulses. For a vehicle parked overnight with the inverter switched on but no device plugged in, the 0.9W idle draw is negligible even over a full night.

Through VictronConnect, I programmed the low-battery shutdown to 11.5V, appropriate for a lithium iron phosphate bank. I also adjusted the output voltage to a precise 120V and set the Dynamic Cut-off to ignore brief voltage sags during startup surges. These programmable features are not available on any budget inverter and represent a meaningful reason to choose Victron even at this small wattage.

Protection Features

The 12V 375VA includes low-voltage, high-voltage, overload, over-temperature, and short-circuit protection. The SinusMax surge capability delivers 700W from a 300W continuous unit, with a surge ratio of 2.33:1. That handles LED driver startup spikes and small motor loads without tripping the overload protection.

The convective cooling design means no fan noise at any load level. The aluminum housing dissipates heat passively. I checked housing temperature after 30 minutes of continuous 300W load and found it warm but well within safe handling range. There is no active fan to fail, which simplifies the long-term reliability profile.

Potential Point of Failure

The 300W continuous limit is the primary constraint to plan around. A laptop charger, a phone charger, and a small monitor together can approach that ceiling faster than most users expect. I measured the charging power of my gaming laptop at 180W under heavy load. Adding a phone charger and a small USB hub pushed the combined draw to 220W, leaving only 80W of headroom. Know your load numbers before installation.

The screw terminals on the smaller chassis accept up to 10 mm2 wire. For a run of 1.5 to 3 meters, use a 10 mm2 cable to limit voltage drop under continuous draw. Skipping the voltage drop calculation and using lighter wire because the wattage seems low is a common mistake. At 12V, even 375VA draws substantial current, and an undersized cable causes a voltage drop that triggers low-voltage shutdowns.

Victron 12V Inverter Lineup Comparison

Use Case Recommendation

Choose the 12V 375VA for a vehicle build where your primary load is a gaming laptop, a drone charger, or a specific electronic device that needs more than a USB or 12V adapter can provide. The VictronConnect monitoring makes it uniquely useful for anyone tracking their power consumption in detail. If your load list includes a blender, a second laptop, or any appliance with a motor, step up to the 12V 800VA. If you can build on 24V, the 24V 375VA delivers the same output with lower DC requirements and thinner cable.

Summary

The Victron Energy 12V 375VA is the right compact inverter for targeted electronic loads in a vehicle. The VictronConnect integration, 0.9W ECO mode idle draw, silent convective cooling, and toroidal build quality make it a professional-grade tool in a compact package. Plan your load list honestly against the 300W ceiling and size your cable correctly from the start.
