BELTTT 2000W 12V Pure Sine Wave Inverter Review

I pulled the BELTTT 2000W 12V Pure Sine Wave Inverter out of the box and set it on my workbench for physical inspection before connecting anything. The housing is a combination of aluminium and sturdy plastic. The aluminum covers the main body and helps dissipate heat from the internal components. The plastic end caps don’t flex under hand pressure. Still, they’re a softer material than the aluminum shell, and the junction between them and the main body is worth watching in high-vibration environments.

The two cooling fans are recessed behind a grille at one end of the unit, which is a good design. Exposed fan blades collect debris fast in RV and outdoor environments. The LCD panel sits on the front face at an angle that’s easy to read from a low mount. For a cabinet or under-bench install, that matters more than most people expect when they’re buying.

What’s in the Box

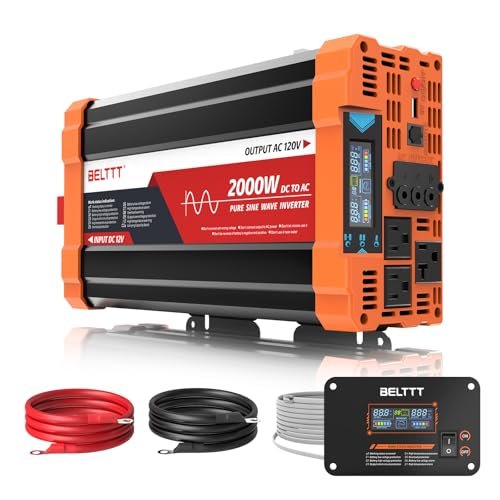

The package includes two 2AWG, 3-foot battery cables, six 45A fuses, a remote controller with a 23-foot cable, a thimble spanner, and a manual.

The 2AWG cables are the right choice for a 2000W 12V draw, which can pull upward of 160 amps at load. The fuse configuration consists of six 45A fuses, providing the system with appropriate overcurrent protection for the current levels involved. I used the included spanner to hand-seat each fuse cap, then gave each a quarter-turn to confirm contact.

The remote controller uses a standard connector and includes 23 feet of cable. That’s enough reach to run the on/off switch to a dash panel or a wall-mounted control box without extending the cable. I surface-mounted the remote on a cabinet face using a small hole saw. It seated cleanly.

Outputs and Features

The 2000W 12V includes dual AC sockets, a dedicated 20A outlet, a 5V/2.1A USB port, and a hardwire port for direct AC connection. The LCDs display the input voltage, output voltage, battery status, and load status in real time. Output voltage and the display itself can each be adjusted within a narrow range, which is useful for matching appliances with tight voltage tolerances.

The fans are dual-controlled. They activate when internal temperature reaches 140°F (±41°F) or when output load exceeds 600W (±150W). The unit runs quietly under light loads and only turns on the fans when conditions require it. Conversion efficiency is rated above 93%.

Protection Features

The protection set covers undervoltage, overvoltage, overload, over-temperature, short circuit, and reverse connection. Reverse polarity protection is a useful safety net included in this inverter for anyone doing their own installation. The pure sine wave output is compatible with inductive and capacitive loads, including motors, compressors, and sensitive electronics that modified sine wave inverters can damage or stress over time.

The 4000W peak surge rating is double the continuous output, a standard 2:1 ratio for this class. Motor-start loads typically need surge power for a fraction of a second, and the 2:1 headroom covers most common inductive loads in RV and off-grid use.

Potential Point of Failure

The plastic end caps are the build detail I’d watch over time in a truck or van install. The DC terminal block and the fuse bank sit at one end, capped with plastic. In a high-vibration environment, the junction between the aluminum body and the plastic endcap can loosen, creating a gap that collects moisture and conductive dust near the DC terminals. A bead of non-conductive silicone around the endcap seam after installation is cheap insurance.

BELTTT Lineup Comparison

Use Case Recommendation

Choose the 2000W 12V if you are running a 12V battery bank and need more headroom than the 1000W or 1500W models offer. It is the right step up when your loads include a refrigerator compressor alongside other draws, and you want the remote controller and hardwire port that the smaller 12V models either lack or leave unconfirmed.

If you are building from scratch and can choose the battery voltage, the 2000W 24V delivers the same AC output at roughly half the DC input. Step up to the 3000W 12V only if you need the 6000W surge for a large motor load; the 4000W peak cannot start.

Summary

The BELTTT 2000W 12V is the most complete 12V inverter under 3000W in the lineup. The 93% efficiency, dual-controlled fans, remote controller, hardwire port, 2AWG cables, and six-fuse protection bank make it a well-rounded choice for home solar, RV, and truck installations on a 12V system. The plastic endcap at the DC terminal end is the one built detail to address before a permanent vehicle install.
