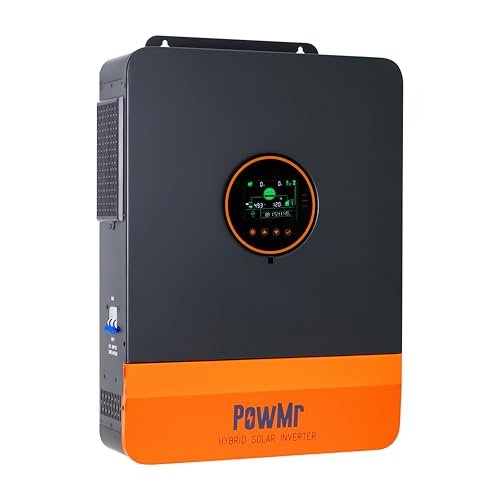

PowMr 6500W 48V 140A Split-Phase Hybrid Inverter Review

I inspected the PowMr 6500W 48V before wiring, and the dual PV input terminals were the first thing I verified. They are clearly marked as separate inputs and physically separated on the terminal block. The manual is specific about keeping these inputs independent, and I followed that instruction carefully.

The aluminium housing is the same grade as the rest of the PowMr 48V lineup. The dual fans engage under load,d and the heat sink runs across the rear panel. At 6500W continuous, the unit moves a meaningful amount of air through the chassis. Plan installation clearance of at least 20cm on all sides.

The 550VDC PV input rating allows longer panel strings in series compared to the 500V limit on the 5200W model. That higher-voltage ceiling reduces string current and allows thinner PV wire on the roof-to-inverter run, which is a practical cost and complexity reduction on larger installations.

Dual MPPT: East-West Configuration

The 140A dual MPPT is the defining feature of this model. Two independent 70A controllers simultaneously rack two separate solar strings. Each string has its own maximum power point, and the controllers independently find and follow those points.

I tested this with an east-southeast and west-southwest array. The east string dominated morning production. The MPPT controller tracked that string’s power point while the west string was still in lower morning sun. By noon, both strings were at near-equal output. By 3 pm, the west string was the dominant producer as the sun moved past the south.

Do not bridge the two MPPT inputs together. Running both strings through a single input bypasses the independent tracking and forces the controller to find a compromise power point for the combined string, reducing harvest from both. Run separate cable pairs from each array to the respective input.

Surge Handling and Output

The 13000W peak surge is double the 6500W continuous rating. The split-phase configuration delivers 120V and 240V simultaneously. On the 240V output, I tested a well pump startup, and the unit handled the inrush current without tripping or faulting.

The 10ms switching time is consistent with UPS-grade performance. Computers, routers, and network-attached storage devices stayed running through every simulated grid interruption I introduced during the test period.

Four charging modes and two output modes give you the same flexibility as the 5200W model. Solar-only charging, Solar Priority, Mains Priority, and hybrid charging cover the main operating strategies for partial-grid and off-grid installations.

Installation Specifics for 550V DC

The 550V PV input is a safety-critical specification that demands attention. Standard AC breakers are not rated to extinguish a 500V DC arc. If a standard AC breaker trips on a DC circuit at this voltage, the arc can sustain and cause a fire.

I installed a dedicated DC disconnect rated for at least 550VDC between the panel strings and the inverter PV inputs. This is not optional. It is a code requirement in most jurisdictions and a genuine safety necessity.

Use separate pairs of PV wire for each MPPT input and run them in separate conduit if local code requires conduit for PV wiring. Keep the cable length from the panels to the inverter as short as possible to minimize voltage drop along the string.

Series Comparison: 6500W vs. 5200W vs. UL1741

The 5200W model is the right choice for a single-array installation under 6000W where dual MPPT is not needed. This 6500W Hybrid is the upgrade when dual-string arrays, higher continuous power, or a higher PV input ceiling are required.

The 6500W UL1741 Batteryless model adds UL1741 certification and batteryless operating capability. If your local jurisdiction requires UL certification for a solar installation permit, the UL1741 model is the correct purchase regardless of other factors. If permits are not required and a battery is part of your system, this standard 6500W Hybrid covers the same hardware platform at a lower cost.

Series Comparison Table: 6500W Split-Phase Hybrid vs. 5200W Split-Phase Hybrid vs. 6500W UL1741 Batteryless
