BELTTT 3000W 12V Pure Sine Wave Inverter Review
-
Review By James Ndungu
- last updated 11/04/2026
The BELTTT 3000W 12V Pure Sine Wave Inverter delivers 3000W of continuous power with a 6000W surge rating, 1/0 AWG battery cables, a nine-fuse protection bank, a remote controller, and a hardwire port. Designed for high-demand 12V systems, it handles large motor loads and provides reliable startup power when you need it most.

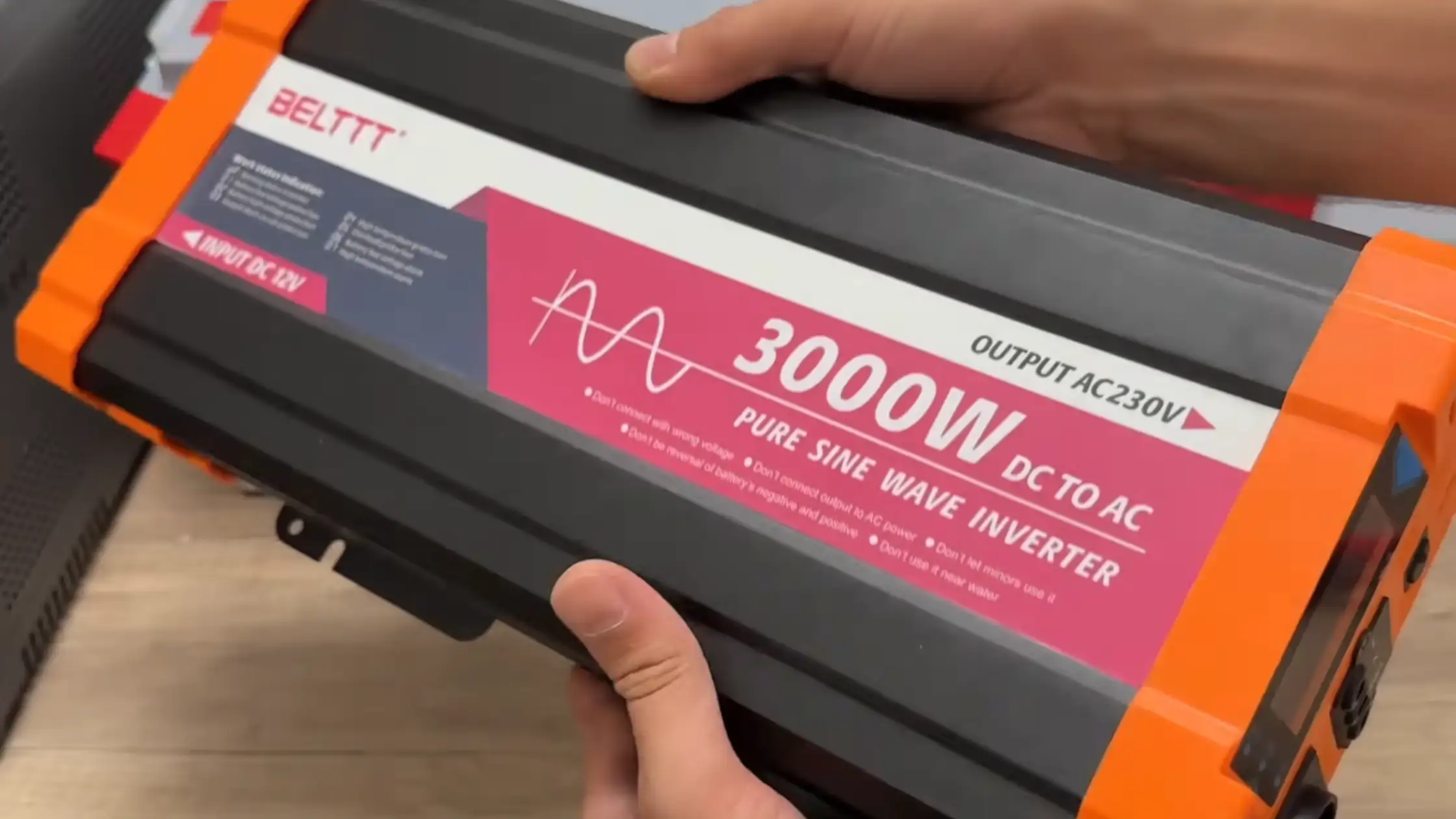

The BELTTT 3000W 12V is the heaviest and most demanding unit in the lineup. I pulled it out of the box, and the weight signals that this is a different category of inverter from the 1000W and 1500W models. The included 1/0 AWG battery cables are the clearest indicator of what this unit demands in an installation. At 3000W and 12V, continuous current draw approaches 250 amps. 1/0AWG is the appropriate cable gauge for that load at short distances, and BELTT, including it rather than leaving the user to source it, is the right call.
The housing is the same aluminum-and-plastic construction as the rest of the lineup, but the larger aluminium body has proportionally more surface area for passive heat dissipation. The dual fans activate at 122°F rather than the 140°F threshold on the 2000W models, which is the right engineering decision for a higher-wattage unit.
What’s in the Box

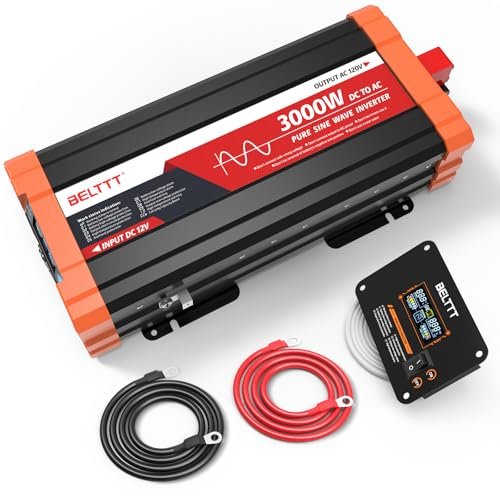

The package includes two 1/0AWG, 3-foot battery cables, nine 45A fuses, a remote controller with a 23-foot cable, a thimble spanner, and a manual. Nine 45A fuses in the fuse bank is a substantial protection array, providing 405 amps of aggregate fuse capacity appropriate for the current levels this inverter handles during heavy surge events. I used the included spanner on each cap and gave the block a visual inspection before powering on.
The remote controller and hardwire port are both included, giving this model the same installation flexibility as the 2000W units. The 23-foot remote cable covers most mounting scenarios without extension.
Outputs and Features
The output configuration matches the 2000W 12V: dual AC sockets, a dedicated 20A outlet, a 5V/2.1A USB port, and a hardwire port. The LCDs display the input voltage, output voltage, battery status, and load status in real time. Output voltage and screen brightness are adjustable within a narrow range.
Conversion efficiency is rated above 93%, matching the 2000W 12V model. The 6000W surge rating is double the continuous output. For the most common reason people buy a 3000W inverter over a 2000W, which is starting an air conditioner, the 6000W peak is the relevant spec.
Protection Features
The protection set covers undervoltage, overvoltage, overload, over-temperature, short circuit, and reverse connection. The fan activation threshold of 122°F is lower than that of the 2000W models. The fans engage earlier relative to internal temperature, which is appropriate for a unit where the power stage generates more heat under sustained load.
Potential Point of Failure
At 3000W on a 12V system, the DC cable and terminal assembly is the most likely failure point, and that failure is most often an installation issue rather than a product defect. The included 1/0AWG cables are 3 feet long. Extending the cable run without upgrading the gauge or running parallel cables increases resistance, and the resulting resistance increases with current. After the initial install at full load, check the DC terminal and cable temperatures at 30 and 60 minutes. Any surface temperature above 140°F on the cable jacket or terminal body warrants attention before leaving the system unattended.
BELTTT Lineup Comparison
| Spec | 3000W 12V ★ | 1000W 12V | 1500W 12V | 2000W 12V | 2000W 24V | 3000W 24V |
|---|---|---|---|---|---|---|
| Continuous Power | 3000W | 1000W | 1500W | 2000W | 2000W | 3000W |
| Peak Surge | 6000W | 2000W | 3000W | 4000W | 4000W | 6000W |
| DC Input | 12V | 12V | 12V | 12V | 24V | 24V |
| Efficiency | >93% | >90% | >90% | >93% | >93% | >92% |
| AC Outlets | Dual + 20A | Dual | Dual | Dual + 20A | Dual + 20A | Dual + 20A |
| USB Port | 5V/2.1A | 5V/2.1A | 5V/2.1A | 5V/2.1A | 5V/2.1A | 5V/2.1A |
| Hardwire Port | Yes | No | Yes | Yes | Yes | |
| Remote Controller | Yes, 23ft | No | Yes, 23ft | Yes, 23ft | Yes, 23ft | |
| Freq Select | 60Hz only | 60Hz | 60Hz | 60Hz only | 50/60Hz | 50/60Hz |
| Voltage Adjust | Narrow | Narrow | Narrow | Narrow | 110V-130V | 110V-130V |
| No-Load Current | ≤0.9A | ≤0.7A | ||||
| Cable Included | 2x 1/0AWG 3ft | 2x 5AWG 3ft | 2x 5AWG 3ft | 2x 2AWG 3ft | ||
| Fuses Included | 9x 45A | 3x 40A | 4x 35A | 6x 45A | ||
| Fan Activation | 122°F/>600W | 140°F/>600W | 140°F/>600W | 122°F/>600W | ||
| Op Temp Range | 32°F-104°F | 32°F-104°F |
Use Case Recommendation
Choose the 3000W 12V if you are on a 12V battery bank and need the 6000W surge to start a large motor load, such as a window air conditioner, a well pump, or a workshop compressor. That surge headroom is the primary reason to step up from the 2000W 12V. If you are building a new system and can choose voltage, the 3000W 24V delivers identical AC output at half the DC voltage. Within the 3000W tier, this unit gives up the 50Hz/60Hz selector and the extended 110V–130V voltage range of the 24V version. This trade-off matters for international equipment but not for typical North American off-grid use.
Summary
The BELTTT 3000W 12V is a capable high-wattage inverter. The 1/0AWG cables, nine-fuse protection bank, 93% efficiency, and full output feature set are its strongest inclusions. The lower fan activation threshold compared to the 2000W models is a well-considered detail for sustained high-load use. For users upgrading an existing 12V system that needs air conditioner startup capability, this is the right unit.
